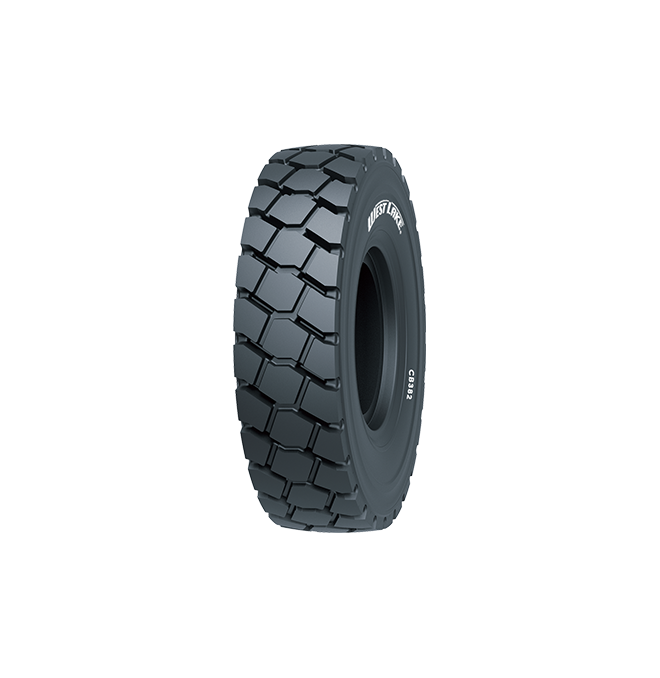

New generation radial heavy forklift tyres.
Both available in TT and TL
Robust sidewall guarantee great low deflection rate
Cool running compound offer low heat build up in operation
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | ||||||||
| OD | SW | SLR | ||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | |||||
| 225/75R15 | TL | 149A5 | - | - | 7.0 | 719 | 28.3 | 233 | 9.2 | 334 | 13.1 | 25 | 31 | 1000 | 145 | 3250 | 7150 | 25 |
| 250/70R15 | TL | 153A5 | - | - | 7.0 | 731 | 28.8 | 251 | 9.9 | 339 | 13.3 | 27 | 34 | 1000 | 145 | 3650 | 8050 | 25 |
| 315/70R15 | TL | 165A5 | - | - | 8.0 | 822 | 32.4 | 308 | 12.1 | 378 | 14.9 | 36 | 45 | 1000 | 145 | 5150 | 11400 | 25 |
| 7.00R15 | TL | 143A5 | - | - | 5.5 | 750 | 29.5 | 200 | 7.9 | 347 | 13.7 | 28 | 35 | 1000 | 145 | 2725 | 6000 | 25 |
| 7.50R15 | TL | 146A5 | - | - | 6.0 | 770 | 30.3 | 215 | 8.5 | 360 | 14.2 | 30 | 38 | 1000 | 145 | 3000 | 6600 | 25 |
| 8.25R15 | TL | 153A5 | - | - | 6.5 | 840 | 33.1 | 235 | 9.3 | 386 | 15.2 | 32 | 40 | 1000 | 145 | 3650 | 8050 | 25 |
| 10.00R20 | TL | 166A5 | - | - | 7.50 | 1055 | 41.4 | 278 | 10.8 | 484 | 19.1 | 35 | 44 | 1000 | 145 | 5300 | 11700 | 25 |
| 11.00R20 | TL | 170A5 | - | PORT USE | 8.00 | 1085 | 42.7 | 293 | 11.5 | 499 | 19.1 | 38 | 48 | 1000 | 145 | 6000 | 13200 | 25 |
| 12.00R20 | TL | 176A5 | - | PORT USE | 8.50 | 1136 | 44.7 | 315 | 12.4 | 513 | 19.1 | 40 | 50 | 1000 | 145 | 7100 | 15700 | 25 |
| 12.00R24 | TL | 178A5 | - | PORT USE | 8.50 | 1225 | 48.2 | 315 | 12.4 | 563 | 22.2 | 40 | 50 | 1000 | 145 | 7500 | 16500 | 25 |
| 14.00R24 | TL | 193A5 | - | PORT USE | 10.00/2.0 | 1368 | 53.9 | 375 | 14.8 | 623 | 24.5 | 64 | 81 | 1000 | 145 | 11500 | 25400 | 25 |
*Reserves the rights of final interpretation and modification
