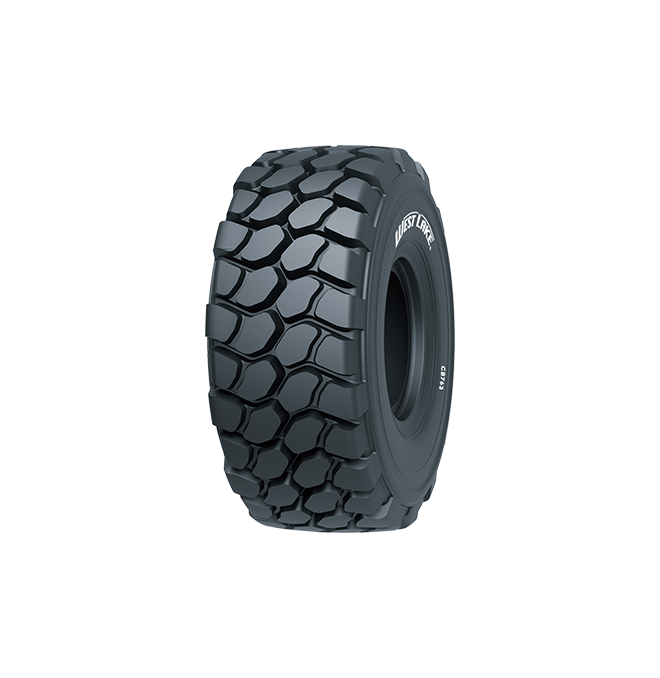

Latest design with alternating and muti-edged blocks offers better flotation and super traction on soft and muddy soil
Longer tread life due to the deeper E4/L4 tread depth and unique tread compound
Additional protective sidewalls are shaped to minimize damage from cutting
Optimised Retreading Ability because of the robust casing
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | ||||||||
| OD | SW | SLR | ||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | |||||
| 20.5R25 | TL | 177B | ★★ | E-4 | 17.00/2.0 | 1490 | 58.7 | 520 | 20.5 | 677 | 26.7 | 50 | 63 | 525 | 76 | 7300 | 16100 | 50 |
| 23.5R25 | TL | 185B | ★★ | E-4 | 19.50/2.5 | 1615 | 63.6 | 595 | 23.4 | 759 | 29.9 | 53 | 67 | 525 | 76 | 9250 | 20400 | 50 |
| 26.5R25 | TL | 193B | ★★ | E-4 | 22.00/3.0 | 1800 | 70.9 | 675 | 26.6 | 613 | 24.1 | 56 | 71 | 525 | 76 | 11500 | 25400 | 50 |
| 29.5R25 | TL | 200B | ★★ | E-4 | 25.00/3.5 | 1875 | 73.8 | 750 | 29.5 | 838 | 33.0 | 59 | 74 | 525 | 76 | 14000 | 30900 | 50 |
| 750/65R25 | TL | 190B | ★★ | E-4 | 24.00/3.0 | 1610 | 63.4 | 754 | 29.7 | 727 | 28.6 | 53 | 67 | 475 | 69 | 10600 | 23400 | 50 |
| 33.25R29 | TL | 209B | ★★ | E-4 | 27.00/3.5 | 2110 | 83.1 | 845 | 33.3 | 937 | 36.9 | 66 | 83 | 525 | 76 | 18500 | 40800 | 50 |
| 875/65R29 | TL | 203B | ★★ | E-4 | 28.00/3.5 | 1922 | 75.7 | 879 | 34.6 | 843 | 33.2 | 59 | 74 | 475 | 69 | 15500 | 34200 | 50 |
*Reserves the rights of final interpretation and modification
