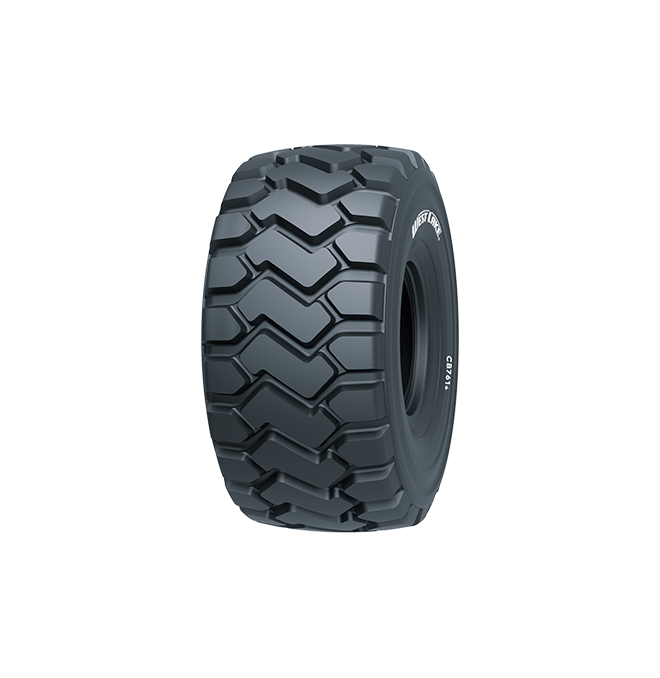

CB761+
*Reserves the rights of final interpretation and modification
Do you need help?
Westlake OTR: Provide one-stop off-the-road tire solutions
| Tire Size | Type | LI/SS | Star Rating | TRA Code or Application | Recommended Rim/Flange Height | Approximate Inflated Dimensions | OTD | Cold Inflation Pressure | Max. Load Capacity | Application Max.Speed | ||||||||
| OD | SW | SLR | ||||||||||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | 32ND | KPa | Psi | Kg | Lbs | km/h | |||||
| 750/65R25 | TL | 190B | ★★ | E-3 | 24.00/3.0 | 1610 | 63.4 | 754 | 29.7 | 727.0 | 28.6 | 44 | 67 | 475 | 69 | 10600 | 23400 | 50 |
| 29.5R29 | TL | 202B | ★★ | E-3 | 25.00/3.5 | 1975 | 77.8 | 750 | 29.5 | 843 | 33.2 | 44 | 55 | 525 | 76 | 15000 | 33100 | 50 |
*Reserves the rights of final interpretation and modification
